Intersputnik Offers C-band, Тransatlantic Coverage on
Express АМ44 (11º W)
One of the world’s first satellite operators, the Intersputnik International Organization of Space Communications was established on November 15, 1971 and currently unites 25 countries. Hereby Intersputnik is pleased to offer for your kind consideration the following C-band capacity:

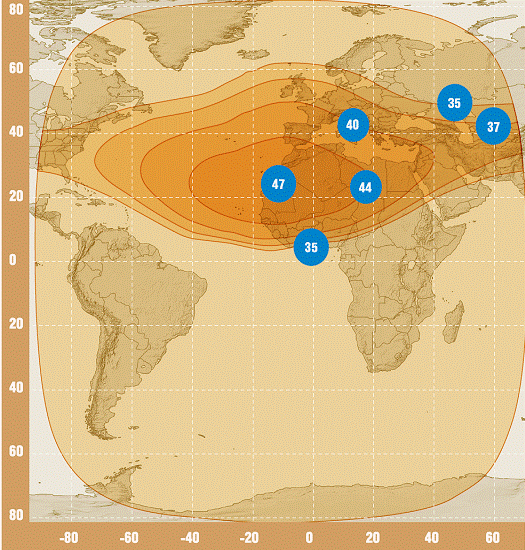

We are offering C-band capacity on AM44 with the following parameters and coverage.
|
No.
|
Parameter
|
Value
|
|
1.
|
Orbital position
|
11º W
|
|
2.
|
Launch date
|
02/11/2009
|
|
3.
|
Station-keeping accuracy
East-West
North-South
|
± 0.05º
± 0.05º
|
|
4.
|
EIRPmax at beam peak, dBW
|
47
|
|
5.
|
Polarization
- transmission
- reception
|
right-hand circular
left-hand circular
|
|
6.
|
Transponder bandwidth, MHz
|
40
|
|
7.
|
Transponder receivers’ figure of merit (G/T) at beam peak, dB/ºК
|
3.5
|
|
8.
|
Transponder frequency
|
Standard C-band
|
|
9.
|
Saturation Flux Density, dBW/m2
|
from -94 to -78
|
Fur further information, please, contact
Commercial Department
INTERSPUTNIK
tel.: (+7 499) 252-86-98
fax: (+7 499) 241-07-84
mailto: sales@intersputnik.com
http://www.intersputnik.com/
